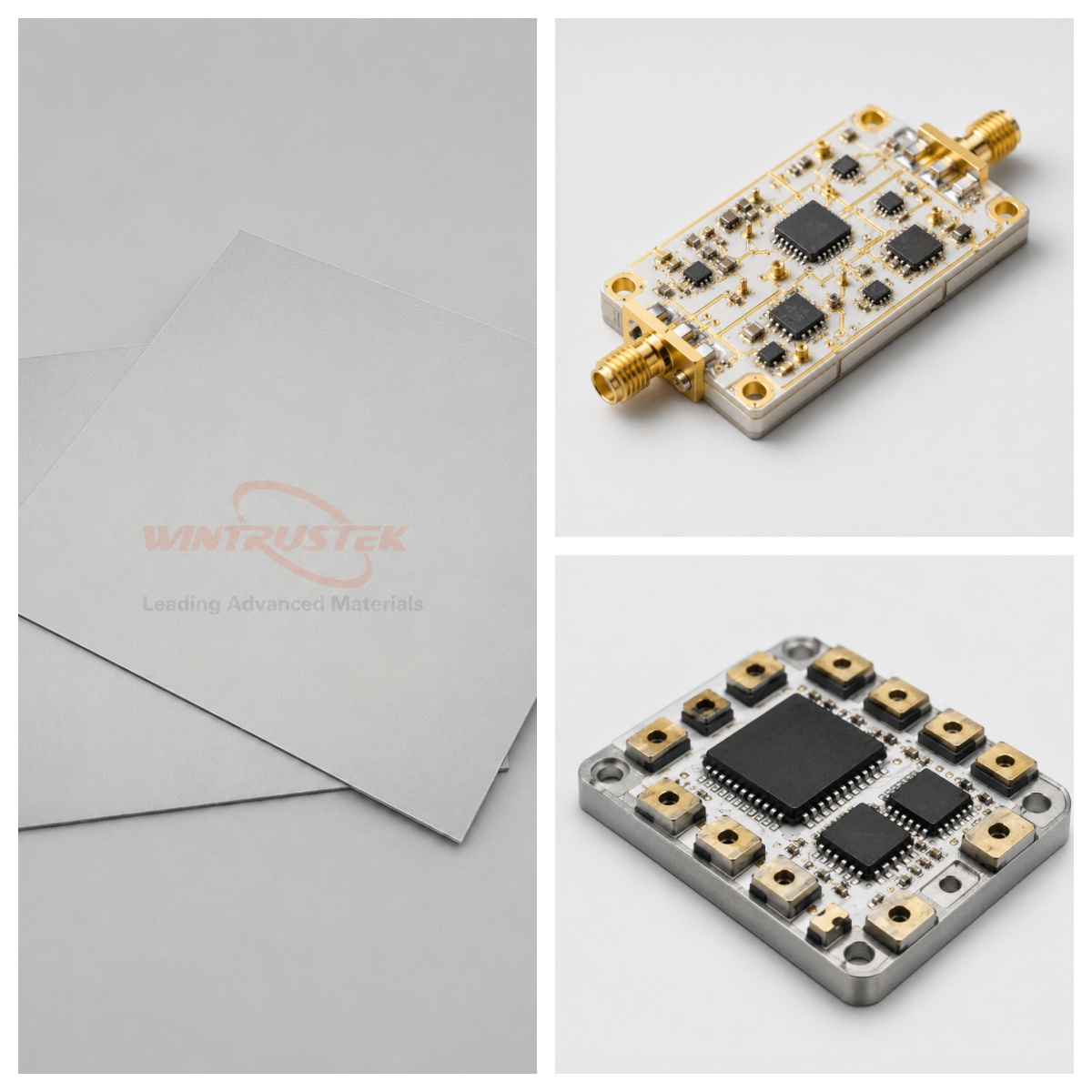

(Aluminum Nitride Ceramic Substrates Produced by Wintrustek)

As power electronics, semiconductor equipment, and high-performance electronic packaging continue to develop, material selection becomes increasingly important. In many applications, a material must provide not only reliable electrical insulation but also efficient heat dissipation and long-term dimensional stability. Aluminum nitride ceramic, commonly known as AlN ceramic, is one of the advanced ceramic materials well suited for these requirements.

One of the major advantages of aluminum nitride ceramic is that it provides both great thermal conductivity and outstanding electrical insulation. Chips, power modules, heating elements and electronic gadgets produce a lot of heat when they are working. If this heat is not adequately removed, the device performance may be reduced, the service life may become shorter and reliability problems may arise. AlN ceramic has substantially better thermal conductivity compared with alumina ceramic and is more appropriate for situations where heat control is important. At the same time, AlN is an electrically insulating material, helping in transferring heat without producing electrical short-circuit dangers.

AlN ceramic also has a relatively low coefficient of thermal expansion similar to silicon. This may be helpful to reduce the thermal expansion mismatch-induced stress during thermal cycling and improve the reliability of packing structures and bonding connections. AlN also possesses great mechanical strength, high temperature and chemical stability for tough process conditions.

In practical applications, AlN ceramic is commonly used for:

• Power electronic substrates

• Insulating heat spreaders

• Ceramic heat sinks

• LED packaging substrates

• IGBT modules

• SiC/GaN power device packaging

• Semiconductor equipment components

However, the selection of AlN ceramic should not be based just on thermal conductivity. The final performance of the component depends on the manufacturing process, material purity, sintering additives, surface roughness, flatness, dimensional tolerance and metallization compatibility. Therefore, the operating temperature, heat dissipation, electrical insulation, assembly method and dimensional need should be well defined at the design stage before selecting the AlN ceramic grade or component design accordingly.

Aluminum nitride ceramics is not only a high thermal conductivity material in general. It combines thermal conduction, electrical insulation, thermal expansion matching and mechanical stability, resulting in greater heat dissipation, stable operation and long-term durability of the power electronics and semiconductor devices.
