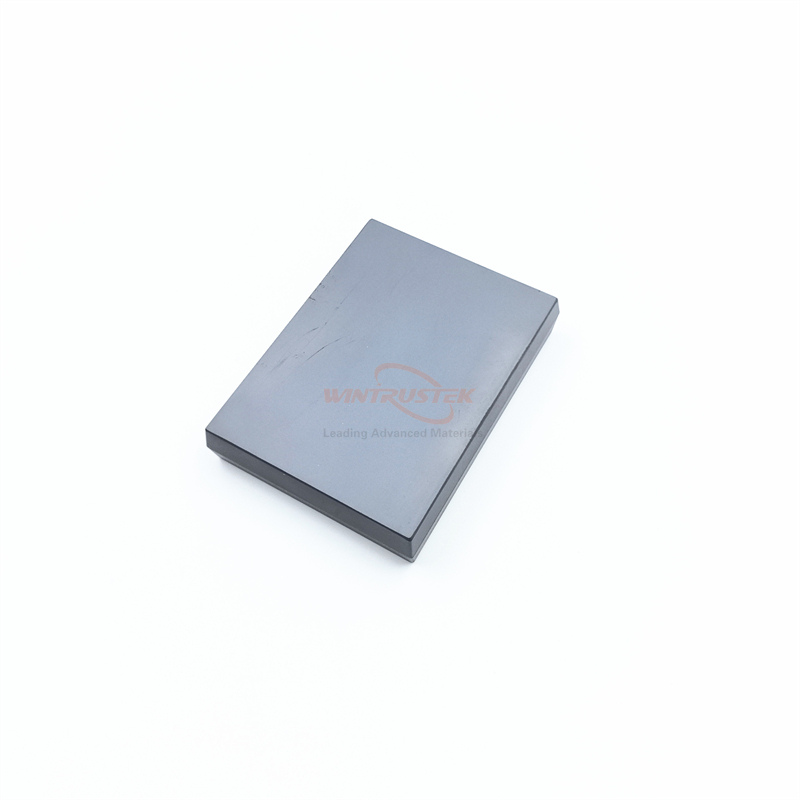

(Silicon Carbide Ceramic Plate)

In modern industrial heating processes such as high-temperature sintering, chemical processing and semiconductor production, classical conduction and radiation heating technologies generally suffer from low efficiency, uneven heat distribution and slow thermal response.

Microwave-assisted heating technology has been a game changer in addressing these industrial issues. Silicon Carbide (SiC) absorber plates are a key advanced material component of high-efficiency microwave heating systems.

Silicon Carbide has high dielectric loss factor, superb heat conductivity and tremendous mechanical strength. SiC plates can absorb microwave energy quickly, transforming it into heat with high efficiency when subjected to microwave electromagnetic fields.

Wintrustek manufactures precision-engineered Silicon Carbide (SiC) plates suited for microwave absorption, thermal radiation susceptor applications, and high-temperature microwave heating cells.

1. The Physics: How SiC Plates Soak Up Microwave Energy and Turn it into Heat

Microwave heating is based on mechanisms of dielectric heating. Low loss materials (such as pure quartz or alumina ceramics) are transparent to microwaves and let the waves pass with no interaction. Silicon Carbide (SiC) is a top microwave susceptor.

• High Dielectric Loss Factor: SiC possesses high imaginary permittivity and dielectric loss factor at standard microwave frequencies (e.g. 2.45 GHz and 915 MHz). When the microwaves pass through the SiC plate, the alternating electromagnetic field causes a fast dipole rotation and charge movement inside the SiC crystal lattice.

• Instantaneous Volumetric Energy Conversion: This lag of friction and polarization will instantaneously convert electromagnetic radiation into intense and uniform thermal energy in seconds.

• Improved Thermal Radiation: The high emissivity SiC plate is heated by microwave and serves as a radiant heater providing uniform thermal energy to surrounding non-absorbing workpieces or process gasses through infrared radiation and conduction.

2. Key Advantages of Wintrustek SiC Microwave Absorber Plates

The use of high purity Wintrustek Silicon Carbide plates in microwave heating systems provides a substantial operating advantage over traditional metal or oxide ceramic heating elements such as:

A. Ultra-Fast Heating Rates & High Energy Efficiency

SiC plate heat up quickly to temperatures above 1000 °C in minutes under microwave excitation. This greatly cuts down on processing cycle time and energy consumption over traditional electric resistance furnaces.

B. Exceptional Thermal Shock Resistance

Standard ceramics can shatter under rapid heating and cooling cycles. SiC has a very high thermal conductivity (120 to 200 W/m∙K) and a low thermal expansion coefficient which results in excellent thermal shock tolerance even under vigorous thermal ramping.

C. High Temperature and Chemical Inertness

Wintrustek SiC plate have excellent mechanical strength and dimensional stability at very high operating temperatures (up to 1400 °C and above in a controlled atmosphere). They are resistant to oxidation, chemical attack by acids/alkalis, and hostile gasses in industrial processes.

D. Uniform Heating Profile

Localized hot spots are eliminated since the plate heats the entire volume of the SiC plate at the same time, giving a smooth uniform temperature gradient over the working zone.

3. Key Industrial Applications for Microwave-Absorbing SiC Plates

• Microwave Sintering Furnaces: Used as a susceptor plate to aid in high temperature sintering of technical ceramics, powder metallurgy components and dental zirconia.

• Catalyst Heating Beds: Used for catalyst heating beds and high-speed industrial drying systems.

• Semiconductor and Materials Processing: Allows for localized high temperature annealing, silicon wafer processing, and quick thermal processing.

• Environmental and Waste Treatment: Used in high temperature microwave pyrolysis and waste gas treatment systems.

Upgrade Your Microwave Heating Systems with Wintrustek

Wintrustek produces high-density custom-dimensioned Silicon Carbide (SiC) microwave absorber plates for custom industrial microwave furnaces, research-grade susceptors and high-temperature process cells to your exact specifications.

Our precise machining capabilities enable us to deliver excellent surface finishes in tight tolerance flat plates, perforated panels and unique geometric tiles.

Contact Wintrustek at sales@wintrustek.com to speak with our material engineers or to get an estimate for your microwave heating application.
