(LaB6 Photoemission Electron Sources)
Conventional thermionic source emitters (tungsten filaments or typical hot LaB6 cathodes) used in Transmission Electron Microscopy (TEM) and Ultrafast Electron Microscopy (UEM) are physically limited in their time resolution to capture fast atomic-scale dynamics. Conventional thermal sources producing continuous electron beams are not capable of observing ultrafast structure dynamics on the picosecond and femtosecond time scales.
To fill this gap between spatial and temporal resolution, researchers and OEM microscope manufacturers are turning to photoemission technology using high-purity Lanthanum Hexaboride (LaB6) cathodes.
Highly coherent and strong electron pulses are emitted by LaB6 photoemission electron sources operated by ultrafast pulsed lasers via the photoelectric effect. This enables four-dimensional TEM (4D-TEM) to observe material phase transitions, acoustic phonon propagation, and transient chemical reactions at sub-nanometer and femtosecond scales in real time.
Wintrustek specializes in the growth and precision machining of high-purity Lanthanum Hexaboride (LaB6) single crystals suitable for photoemission electron guns and next generation TEM systems.
1. The Physics: How LaB6 Photoemission Sources Work
Thermionic emission from conventional LaB6 cathodes relies on thermal energy overcoming the work function of the material. Conversely, LaB6 photoemission electron sources work on the basis of laser-induced photoelectron emission:
Advantage of Low Work Function: LaB6 has a very low work function (about 2.6 to 2.7 eV). Upon irradiation by ultra-short laser pulses (e.g. UV or deep-UV lasers) the photon energy readily exceeds this threshold, leading to fast electron emission.
Laser Triggered Pulsed Beam: Electron packets are emitted exactly in time with the laser pulses, not as a continuous stream of electrons. This enables the generation of ultrashort electron bunches (down to femtoseconds) without sophisticated mechanical or electrical beam blanking.
High Brightness and High Coherence: Ultrahigh brightness, tiny virtual source sizes and excellent spatial coherence are achieved by using single-crystal LaB6 tips, usually oriented along the <100> or <310> crystallographic planes, which are necessary for sharp TEM phase contrast imaging.
2. Key Advantages of Wintrustek LaB6 Cathodes in Photoemission TEM
The application of Wintrustek single-crystal LaB6 cathodes in photoemission electron sources provides clear practical benefits:
A. High peak current and excellent quantum efficiency
LaB6 has great quantum efficiency under ultraviolet laser activation owing to its low work function. This provides a good photoemission electron current even at lower laser power levels, reducing thermal damage to the cathode tip.
B. Improved Ultrafast Time Resolution
Synchronization of LaB6 photoemission sources with femtosecond laser sets enables Ultrafast Electron Microscopy (UEM) to capture stroboscopic movie frames of atomic motion, lattice vibrations and fast phase transitions without temporal blurring.
C. Life-Span and Chemical Stability
The Wintrustek LaB6 single crystals are very chemically resistant and have very low volatility in ultrahigh vacuum (UHV). This provides constant photoemission yields for thousands of hours of operation with little deterioration of the tip.
D. Spread of Remaining Thermal Energy
Because photoemission is achieved at a lower temperature than the typical thermionic emission, the energy spread of the photoelectron beam is much reduced, which reduces the chromatic aberration in TEM imaging.
3. Primary Applications in Advanced Electron Microscopy
4D Ultrafast Electron Microscopy (4D-UEM) Real-time tracking of lattice dynamics, phase change routes and shock wave propagation in metals, ceramics and 2D materials.
Ultrafast Electron Diffraction (UED): Seeing structural changes in femtosecond laser generated chemical processes and phase transitions.
Cathodoluminescence and Transient Spectroscopy : Carrier dynamics and optical characteristics in wide-bandgap semiconductors and nanophotonics .
Prototyping High-brightness Photoelectron Guns: as main emitters for next generation particle accelerators and specialized electron diffraction tools.
Ultra-fast LaB6 Electron Sources Collaborate with Wintrustek
With ultrafast electron microscopy moving toward advanced materials science, semiconductor research and nanotechnology high quality LaB6 emitters are critical to realizing the highest performance of the instrument.

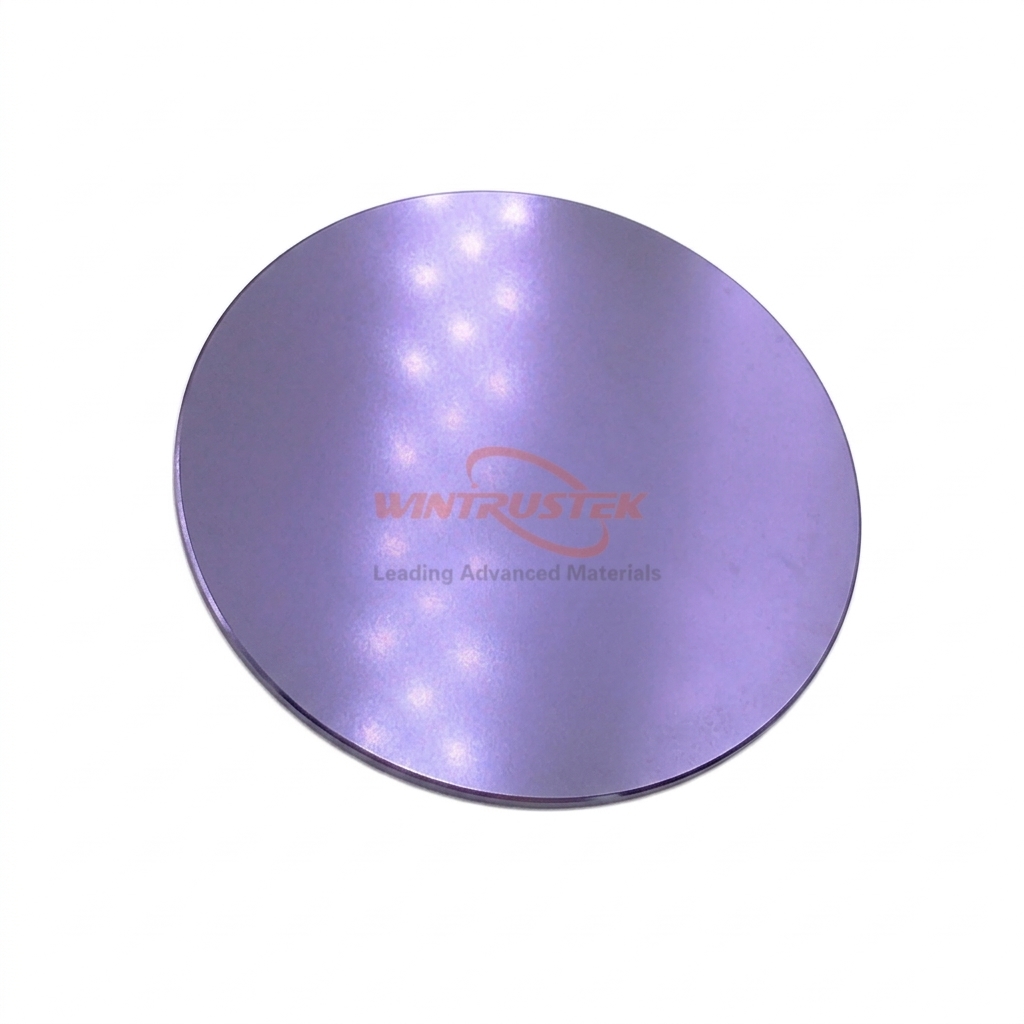

Wintrustek offers high purity single crystal Lanthanum Hexaboride (LaB6) emitter tips, truncated spheres and custom oriented cathode geometries for photoemission applications. stringent quality control assures excellent crystal perfection, uniform work function distribution and outstanding mechanical mounting stability.
