Bridge plugs, frac plugs and packers are the unsung heroes in oilfield completion and fracturing operations that isolate zones under tremendous hydrostatic pressure. These downhole tools rely on slips and slip buttons, small, designed parts that bite into the high-strength steel wall of the casing to hold the tool in place.
For years, hardened tool steel, iron or tungsten carbide inserts have been the standard for slip construction. But with deepwater exploration and unconventional shale fracturing moving operations into deeper, hotter and more corrosive conditions, metal slips are increasingly failing because of severe corrosion, premature wear or grinding issues.
To tackle these problems, the reliability of the downhole anchor has been redefined by applying sophisticated technical ceramics. Wintrustek makes high performance Zirconia (ZrO2) and Silicon Nitride (Si3N4) ceramic slip buttons with superior casing gripping force, chemical immunity and fast drillability.

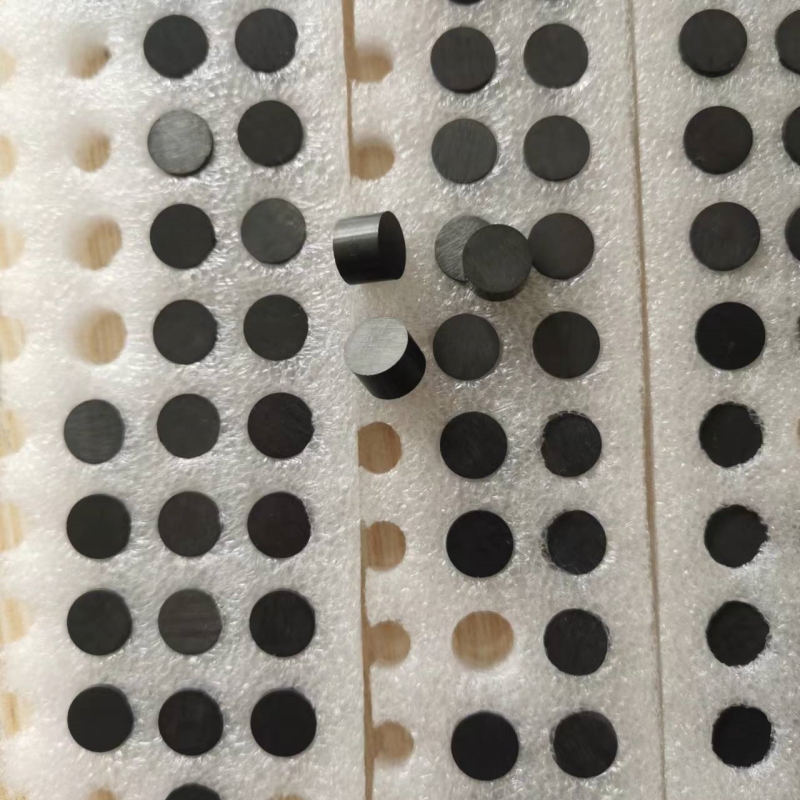

(Silicon Nitride Ceramic Slip Buttons)
The following is a detailed comparison of Zirconia vs. Silicon Nitride ceramic slip buttons and how they maximize downhole tool performance.
1. The Core Limitation of Metal Slips in Downhole Applications
The slip buttons must pierce the inner wall of the casing to anchor against pressures that frequently surpass 10000 psi . This is for the purpose of placing a Frac Plug or Packer. Conventional metallic slips have high surface hardness, but three catastrophic flaws:
Severe Corrosion and Erosion: Rapid metal degradation and hydrogen embrittlement are experienced in the presence of sour gas (H2S), carbon dioxide (CO2), high-salinity brine, and acid stimulation fluids.
Milling Bottlenecks: Metal slips cause thick metallic debris after hydraulic fracturing. Removing metal plugs by milling is time consuming and expensive, wearing down drill bits and increasing the cost of everyday operations.
Pre-Set Risks: Metal slips may corrode or deform during run-in-hole (RIH) operations. Risk of catastrophic pre-setting of the plug before reaching the target depth.
2.Zirconia (ZrO2) Slip Buttons - Maximum Toughness For Harsh Setting Shock
Advanced ceramics are known as ”ceramic steel”. Zirconia is the example, namely Transformation-Toughened Zirconia (TTZ) or Yttria-Stabilized Tetragonal Zirconia Polycrystals (Y-TZP).
Benefits:
Extreme Fracture Toughness: Zirconia has the highest fracture toughness of all monolithic ceramics. Zirconia slip teeth are resistant to chipping, micro-cracking and mechanical shock when the setting force is applied and upon impact with the casing wall.
High Flexural and Compressive Strength: Zirconia can withstand the huge radial hydraulic stresses seen in high pressure pump-ins without crushing.
Chemical Immunity: Immune to H2S, CO2 and acidic fracturing fluids. Structural integrity throughout the stimulation cycle.
Best for:
Bridge plugs and packers for corrosive conditions where maximal fracture toughness is required for setting. Standard to deep frac plugs.
3. Silicon Nitride (Si3N4) Slip Buttons - for Thermal Superiority and Ultra fast Drillability
Silicon Nitride is a high performance covalent ceramic, very resistant to thermal stress, extremely hard and easy to machine.
Main Benefits:
Superior hardness and wear resistance: Silicon Nitride is much harder than Zirconia and tool steel. Its cutting edge can easily bite into heat treated, high grade steel casings (P110 or Q125 grades).
Exceptional Thermal Shock Resistance: Si3N4 retains its mechanical integrity during high temperature swings without deterioration in High-Temperature, High-Pressure (HTHP) wells.
Ultra-Fast Drillability / Millability: Silicon Nitride is light weight and brittle when impacted by a rotary PDC bit. Si3N4 slips disintegrate into fine, non-damaging ceramic powder that easily flows out with circulating fluid in plug drill-out operations and reduces rig milling time by up to 50%.
Ideal For:
Ultra-HTHP wells, composite frac plugs for quick drill-out, and debris-minimized wellbore cleanout operations.
Wintrustek Advantage: Wintrustek custom engineers Ceramic Slip Buttons with optimized tooth profiles, sharp biting edges, tight dimensional tolerances. Our ceramics provide consistent anchor positioning and bit damage removal during post-frac mill-out.
